EQUIPMENT OVERVIEW

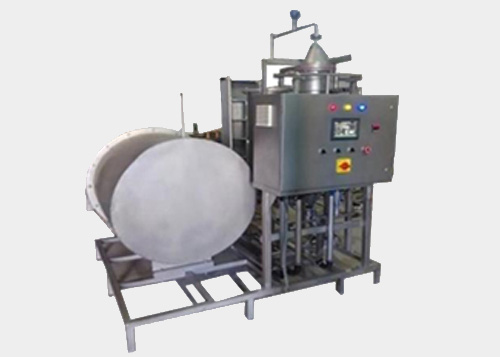

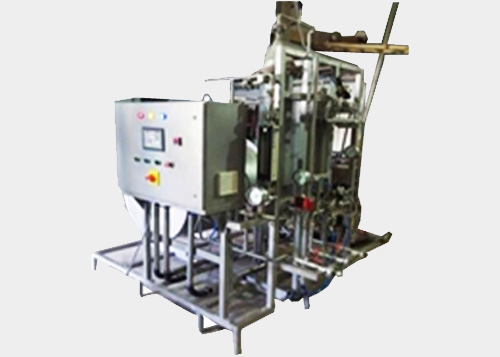

The inlet air incinerator is installed in the air inlet header and is intended for supplying process air to fermenter skid. Inlet air is heated upto 300°±50°C for at least 6 sec. After heating, the incinerator air should be cooled down to 25±5°C temperature with cooling / chilled water before air is supplied.The equipment is designed with consideration of easy accessibility and maintainability.

Air Incinerator Is Provided With The Following:

Heat Exchanger and Cooler for heating/cooling the air Provision of Pressure Release Valve for Safety HMI with 21 CFR Part II compliant data security, process data management & password management features. Operator Interface Panel with HMI and other necessary instruments to control & operate the system. Provision of remote access control & Data acquisition with SCADA Software.


Client

Serum Institute Of India
