Ultrasonic Equipments
We are Manufacturer, Supplier, Exporter of Ultrasonic Equipments. Our setup is situated in Pune, Maharashtra, India.
What is Ultrasonic?
The frequencies above the normal human hearing (above18-20KHz) is called Ultrasonic frequency. The Ultrasonic generator generates Ultrasonic power at ultrasonic frequency (20KH to 40KHz). The Ultrasonic power drives the PZT transducers (Piezo Electric Transducers). The high frequency ultrasonic vibration in the fluid causes cavitation. Microscopic bubbles are formed and they implode intensely causing intense scrubbing action on the surface of the objects to be cleaned.
Where is it used?
Engineering : Cleaning and degreasing of machined parts and assemblies
Electroplating : Removal of buffing compound
Pharma : Degassing, Emulsion, Rubber/ Plastics plugs & caps cleaning, Ampoules, Vials, Glassware
Medical : Hospitals, Dentist, Ophthalmic, Lenses, Surgical Acccessories manufacturers Electronics : Electronic components, Assembled PCBs
Others :Jewellery, Laboratories, Spectacle frames and lenses, Watch parts, Watch cases and strapes, Spinnerates, Ball point nozzles, Auto industry
What Trans-O-Sonic offers?
Trans-O-Sonic offers a comprehensive assortment of ultrasonic products for diverse industrial consumption. We are a prominent manufacturer and supplier of the following products:
• Ultrasonic Cleaners
• Ultrasonic Cleaners for Hospitals
• Ultrasonic Cleaners for Laboratories for cleaning infectious bottles
• Ultrasonic Disintegrators
• Ultrasonic Vapour Degreasers
• Ultrasonic Immersible Transducers
• Ultrasonic Cleaners with in-built Chiller
• Top loaded Industrial Component Washing machine
• Multi Stage Ultrasonic Cleaning Systems
• Material Handling System
The frequencies above the normal human hearing (above18-20KHz) is called Ultrasonic frequency. The Ultrasonic generator generates Ultrasonic power at ultrasonic frequency (20KH to 40KHz). The Ultrasonic power drives the PZT transducers (Piezo Electric Transducers). The high frequency ultrasonic vibration in the fluid causes cavitation. Microscopic bubbles are formed and they implode intensely causing intense scrubbing action on the surface of the objects to be cleaned.
Where is it used?
Engineering : Cleaning and degreasing of machined parts and assemblies
Electroplating : Removal of buffing compound
Pharma : Degassing, Emulsion, Rubber/ Plastics plugs & caps cleaning, Ampoules, Vials, Glassware
Medical : Hospitals, Dentist, Ophthalmic, Lenses, Surgical Acccessories manufacturers Electronics : Electronic components, Assembled PCBs
Others :Jewellery, Laboratories, Spectacle frames and lenses, Watch parts, Watch cases and strapes, Spinnerates, Ball point nozzles, Auto industry
What Trans-O-Sonic offers?
Trans-O-Sonic offers a comprehensive assortment of ultrasonic products for diverse industrial consumption. We are a prominent manufacturer and supplier of the following products:
• Ultrasonic Cleaners
• Ultrasonic Cleaners for Hospitals
• Ultrasonic Cleaners for Laboratories for cleaning infectious bottles
• Ultrasonic Disintegrators
• Ultrasonic Vapour Degreasers
• Ultrasonic Immersible Transducers
• Ultrasonic Cleaners with in-built Chiller
• Top loaded Industrial Component Washing machine
• Multi Stage Ultrasonic Cleaning Systems
• Material Handling System
ULTRASONIC CLEANERS

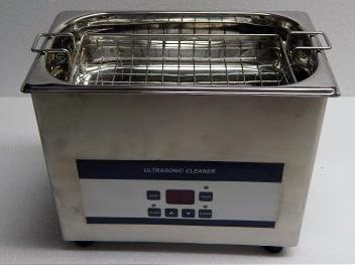

TABLE TOP ULTRASONIC CLEANERS
TABLE TOP ULTRASONIC CLEANERS
| MODEL | SIZE (mm) | CAPACITY (Ltrs) | HEATERS POWER (watts) | ULTRASONIC POWER (watts) |
| Compact | 240 x 140 x 65 | 1.5 | 100 | 50 |
| D-100 | 240 x 140 x 100 | 3.5 | 250 | 100 |
| D-150 | 300 x 240 x 100 | 5 | 250 | 150 |
| D-300 | 300 x 240 x 150 | 9 | 250 | 300 |
| D-500 | 500 x 300 x 200 | 30 | 1500 | 500 |

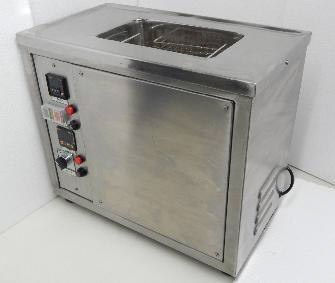

STANDARD ULTRASONIC CLEANERS
STANDARD ULTRASONIC CLEANERS
| MODEL | SIZE(mm) | CAPACITY (Ltrs) | HEATING POWER(watts) | ULTRASONIC POWER(watts) |
| D-150 | 250x150x150 | 5.5 | 400 | 150 |
| D-300 | 300x200x150 | 9 | 400 | 300 |
| D-300 | 300x200x175 | 10 | 400 | 300 |
| D-500 | 450x300x150 | 20 | 1500 | 500 |
| D-500 | 375x325x250 | 30 | 1500 | 500 |
| D-750 | 600x300x300 | 54 | 1500 | 750 |
| D-1000 | 600x400x300 | 72 | 3000 | 1000 |
| D-1500 | 750x400x400 | 122 | 4500 | 1500 |
| D-2000 | 800x450x425 | 153 | 4500 | 2000 |
ULTRASONIC CLEANERS FOR HOSPITALS
ULTRASONIC CLEANERS FOR HOSPITALS
Microprocessor based ultrasonic cleaning system used in hospitals is a two chamber or three chamber cleaning machine consisting of
• Ultrasonic tank,
• Rinsing tank,
• Drying tank.
All the cycles of operation are automatically controlled by a sequential timer as
per the programmed preset timings.

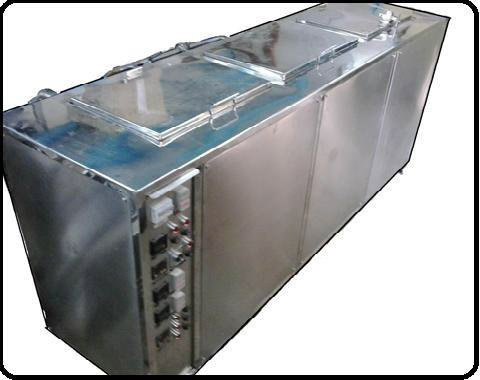

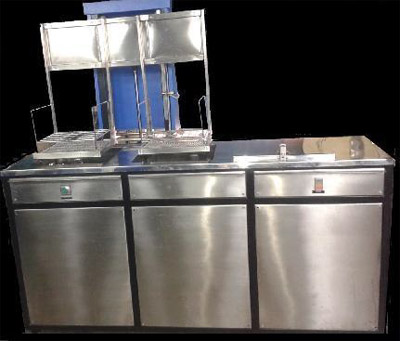

ULTRASONIC CLEANERS FOR LABORATORIES FOR CLEANING INFECTIOUS BOTTLES
ULTRASONIC CLEANERS FOR LABORATORIES FOR CLEANING INFECTIOUS BOTTLES
• These ultrasonic cleaners are mostly used in laboratories where samples of infectious blood, urine etc are collected for testing purpose.
• These bottles are re-used for which a thorough cleaning process is required.
• This multi-stage ultrasonic cleaning system completely minimizes human intervention thereby protecting them from any hazardous and life-threatening diseases.

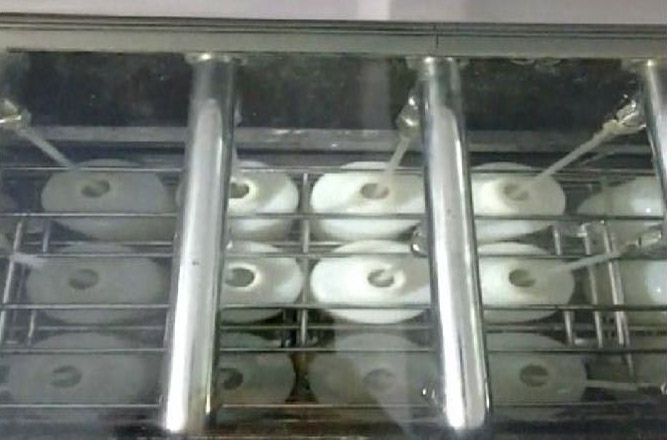

• Spray nozzles are provided at strategic locations so that high jet sprays of water/cleaning media gets sprayed directly inside the bottles.
• Effective ultrasonic sonication helps in complete cleaning of the bottles making them fit to be re-used.
• A 360 degree rotating mechanism is provided to remove the contaminated media from the bottles.
• This is an entire automatic cleaning process which minimizes labour and health hazards due to minimal contact

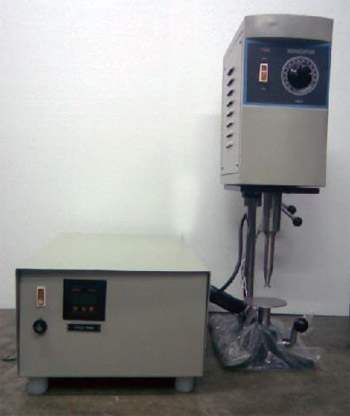

ULTRASONIC DISINTEGRATORS
ULTRASONIC DISINTEGRATORS
Ultrasonic Disintegrators are specially designed for pharmaceutical industry, chemical labs and various research institutes. They are widely used for:
• Emulsification of immiscible liquids
• Degassing and De-aerating of Liquids
• Formulations
• Particle Dispersion/Disintegration
(In small volumes batches of less than 250 ml)
• Emulsification of immiscible liquids
• Degassing and De-aerating of Liquids
• Formulations
• Particle Dispersion/Disintegration
(In small volumes batches of less than 250 ml)

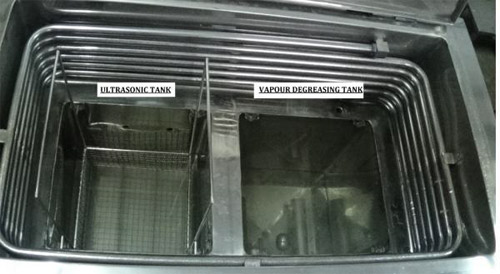

ULTRASONIC VAPOUR DEGREASERS
ULTRASONIC VAPOUR DEGREASERS
We offer top class and efficient TCE based ultrasonic vapour degreasers that are
developed using quality tested material and innovative technology. The range is available
with us in 150 W, 300W, 500W, 750W, 1000W up to 2000 watts with two, three and four
chambers. These degreasers are widely appreciated and demanded in following
segments:
• Cutlery cleaning, Hardware cleaning
• FMCG
• Industrial component cleaning and many others.
• Cutlery cleaning, Hardware cleaning
• FMCG
• Industrial component cleaning and many others.

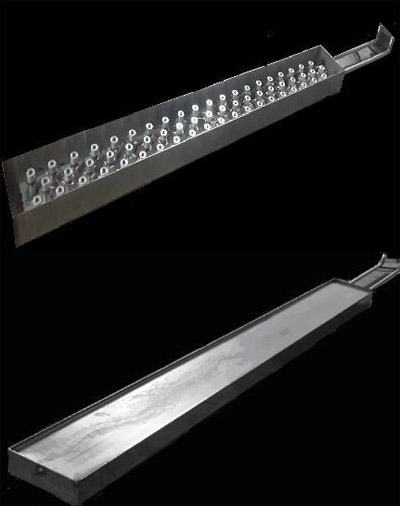

ULTRASONIC IMMERSIBLE TRANSDUCERS
ULTRASONIC IMMERSIBLE TRANSDUCERS
We manufacture immersible transducers to add ultrasonic cavitations to new or existing tanks in various industrial cleaning applications. These immersible transducers are available in various sizes from 250 watts, 500 watts, 750 watts and 1000 watts, 2000 watts All immersible transducers are custom built.
Immersible transducers are either vertical or horizontal mounted depending on
application and tank sizes. Various safety measures are provided in tank to protect the
immersible transducers.

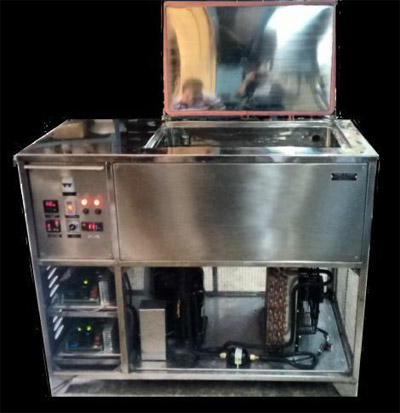

ULTRASONIC CLEANERS WITH IN-BUILT CHILLER
ULTRASONIC CLEANERS WITH IN-BUILT CHILLER
The ultrasonic cleaners with in-built chiller are extensively used in laboratories and in pharma companies.
These machines have an in-built chiller of varying capacities to maintain the temperature
of the bath. Our in-built chiller unit can be set to a desired temperature ranging from 5 –
20 degree C. Ultrasonic cleaners during sonication generates heat which is not suitable
for certain applications. The chiller unit helps to regulate the temperature of the bath to
the desired level.

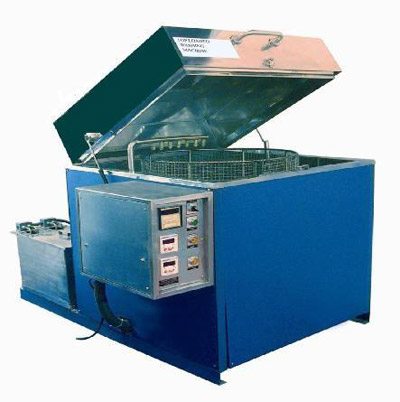

TOP LOADING INDUSTRIAL COMPONENT WASHING MACHINE
TOP LOADING INDUSTRIAL COMPONENT WASHING MACHINE
The top loaded industrial component washing machine is a highly efficient high pressure
jet spray machine with excellent durability and optimum cleaning power. Sump tank
with oil skimmer and filtration system is provided to continuously skim and filter
sprayed cleaning media.
Top loaded washing machines are useful for various applications like
• Cleaning of component/machined part
• Removal of anti-rust before working
• Cleaning of component before welding
• Maintainence workshop
Top loaded washing machines are useful for various applications like
• Cleaning of component/machined part
• Removal of anti-rust before working
• Cleaning of component before welding
• Maintainence workshop
MULTI STAGE ULTRASONIC CLEANING SYSTEMS
MULTI STAGE ULTRASONIC CLEANING SYSTEMS
Multi stage ultrasonic cleaning system consists of a pre-cleaning tank, ultrasonic tank, rinsing tank and drying tank. All the chambers are provided with effective overflow arrangement. It also consists of filtration and recirculation system for continues filtration & recirculation of liquid. Dunking mechanism is also provided to enhance the cleaning
activity.

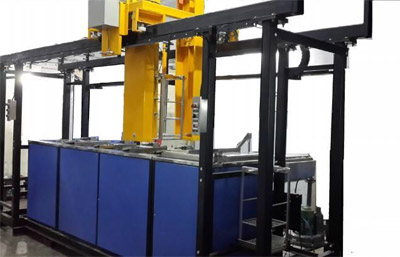

MATERIAL HANDLING SYSTEM
MATERIAL HANDLING SYSTEM
CHAIN AND SPROCKET TYPE / TRANSPORTER TYPE
We are into manufacturing of various industrial and automated material handling systems that are ideal for AQUA based and TCE based multi stage ultrasonic cleaning systems. This bulk material handling system is of rugged chain & sprocket type and has separate or common load / unload stations.
TRANSPORTER TYPE
Transporter type material handling system is one of the most demanded type and we take immense pride in introducing ourselves as one of the leading and well known manufacturers of such systems. Such systems are provided when the objects to be cleaned are in huge quantities and heavy. It is designed to lift around 50 to 400kgs of load.
We are into manufacturing of various industrial and automated material handling systems that are ideal for AQUA based and TCE based multi stage ultrasonic cleaning systems. This bulk material handling system is of rugged chain & sprocket type and has separate or common load / unload stations.
TRANSPORTER TYPE
Transporter type material handling system is one of the most demanded type and we take immense pride in introducing ourselves as one of the leading and well known manufacturers of such systems. Such systems are provided when the objects to be cleaned are in huge quantities and heavy. It is designed to lift around 50 to 400kgs of load.
